Air source heat pumps are a low-carbon heating technology that is growing in popularity in the UK as they are able to extract heat from the air to heat your home while also providing hot water. In addition to their growing popularity, the recent focus on encouraging energy-efficient renewable systems and banning gas boilers has resulted in heat pumps coming into the limelight and will continue to be there in the foreseeable future.
As with any other installation procedure, an ASHP installation process requires customisation to your personal circumstances and needs. For this reason, in this article, we’ll guide you through everything there is to know about the installation of an air source heat pump and the necessary steps before, during and after the installation process.
The process of installing an air source heat pump can be slightly different depending on whether it’s a retrofit or a new build. However, there are 3 main steps involved in the whole process:
To find out how well your home is suited to new air source heat pump installation, fill out the form at the top of the page. Using the details you provide, our dedicated team will match you up to 3 local installers who can offer their expertise and offer you up to 3 tailored quotes for their installation services.
With multiple quotes, you can compare until you’ve found the best deal. All of our quotes are 100% free and come with no obligation.
It only takes 30 seconds

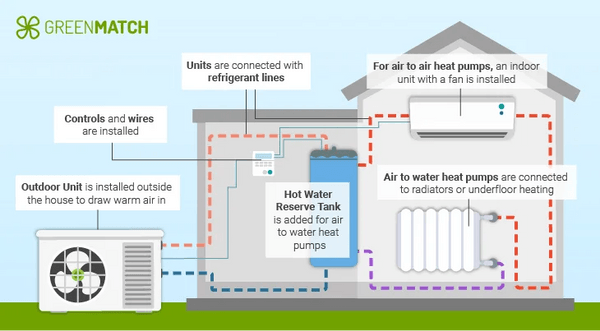

This diagram below illustrates the installation process of an air source heat pump. The initial process remains the same whether you choose to install an air to air heat pump or an air to water heat pump. The system consists of a standard outdoor unit that is installed outside a home and is used to draw warm air in.
The indoor units vary depending on the type of air source heat pumps and can either be connected to radiators, underfloor heating or an air conditioning unit. Either way, before the air source heat pump installation can happen it’s important to consider that the unit needs to be placed outside the property where there is a stable concrete base and good airflow (i.e. nothing blocking it).
An Energy Performance Certificate (EPC) is required before contacting a heat pump installer in the UK, especially if you plan to apply for a grant. EPCs tell you the energy efficiency of your property by rating it from A (very efficient) to G (inefficient) and can also indicate the expected heating costs and emissions of your property.
After arranging for an EPC assessment with an accredited assessor, you can use GreenMatch to get fair quotes for a new efficient heating system. If you’ve recently purchased a property, you may still have a valid EPC, which can also be confirmed through the government portal.
The first step after you have chosen an installer is that they will conduct an onsite inspection to check the suitability of your property in order to install the chosen heat pump. They are also trained to safely remove any existing system such as a gas boiler. Heat loss calculations will be made to determine the size of the heat pump that needs to be installed. The inspection is an important step in planning the installation correctly.
Once this is done, the installer will prepare a report with sketches of the property for efficiency installation of the system. Depending on the size of your home, heating needs and how well your home is insulated, the installer will recommend an appropriate type and size of an air source heat pump.
Air source heat pump installation is a relatively uncomplicated process as the heat pump controls and pipework are similar to traditional boilers. The system consists of indoor and outdoor units that need to be installed.
The outdoor unit is the large unit outside the house that you can typically see. This unit sources air from outside and compresses it into warm air. The indoor units are then installed and connected to either radiators, underfloor heating or hot water pipes.
While installing the outdoor unit, the installer will make sure to choose an area where there is ample airflow with minimal obstructions. The unit will be bolted to the ground and the installer will secure it with brackets so that it does not move.
The indoor cylinder and the outdoor unit need to be wired and connected. The indoor unit will be connected to the radiators and other units where heat is released from within the house. Depending on your home and the distance between the indoor and outside units, wiring will need to be made by usually drilling a hole in a wall. Your installer will then connect them through refrigerant lines and electrical wires.
Once the installation has been completed, there will be some finishing fixes to be made to ensure the efficient working of the heat pump system. Most air source heat pumps come with sensors, so these need to be installed so that the heat pumps can send temperature signals to your thermostat.
At this point in time, you can also talk to your installer about the maintenance requirements. Though air source heat pumps have low maintenance requirements, it is advised to keep checking the filters and cleaning the fans from time to time. This can be done by your installer regularly to ensure that the heat pump is running efficiently throughout its long lifespan of around 20 years.
The cost of installing an air source heat pump typically costs between £8,000-£18,000. This cost is determined by various factors such as the size of the pump, type and the complexities involved in the installation process. If you are looking to install an air source heat pump along with similar home improvement projects such as underfloor heating or new air conditioning units, the installation cost can be lower.
Total Cost: £8,000 – £18,000
Time taken for Installation: 2-5 days
Lifespan of an Air Source Heat Pump: c.a 20 years
The cost of installing heat pumps is becoming more affordable with air source heat pump grant and incentives introduced to promote low carbon technologies. The Boiler Upgrade Scheme being one such example, which will run until 2028.
In the UK, heat pumps are expected to be the most efficient replacement to traditional fossil fuels in order to reduce greenhouse gas emissions. The Heat and Buildings Strategy is also expected to release this autumn, and will provide plans on incentivising homes to make the switch to low carbon heating systems, both in new builds and retrofits.
Installing a heat pump includes several steps and not all of them can be installed yourself. In order to reduce the installation cost you can choose to install the outdoor and indoor units yourself, although this may require some experience.
However, in order to connect the units and wiring them, you will need to get it done by a certified installer with trained experience, as it can be a complex process. Since the lifespan of an air source heat pump spans over two decades, it is best to invest in proper installation that will not cause problems over the years. This is where it becomes important to have a licensed electrician and installer do this for your home. Moreover, in order to be eligible for the RHI, it is essential to get your heat pump installed by an MCS certified installer.
It can take between 2 – 5 days to install an air source heat pump depending on the complications that may occur during the installation process. You will not be disturbed for long as part of the installation is done outside the house.
Most heat pumps also do not require planning permissions but it best to get this checked before installing it in your home. If you’re a small property the installation can even finish within one day, so it ultimately depends on your specific property.
Choosing the right heat pump installer is one of the most crucial decisions to make as they will stick with you during the lifespan of your heat pump. Also, it’s essential to make sure the installer is certified and has good customer service post installation. For this reason, it is recommended to compare different installers and their offers before you choose the right one that meets all your requirements. In our video below, we provide you with a guide on how to choose the right installer based on 5 questions that you can ask them before making a decision:
